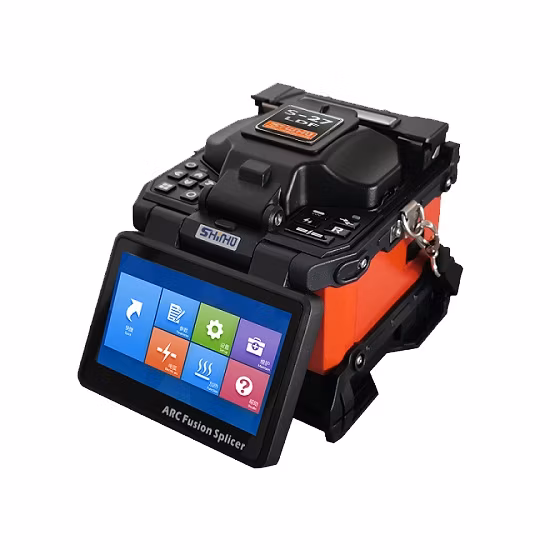

Specialty Large Diameter Fiber Fusion Splicer Shinho S-27 for 250/400/600um Cladding Fibers

Basic Info

Model NO.	S-27
Warranty	1 Year
Customized	Non-Customized
Standard Component	Standard Component
Type	Laser Source
Alignment Method	Clad to Clad
Applicable Fiber	Sm(G.652),mm(G.651),Ds(G.653),Nzds(G.655)
Cladding Diameter	125-400um
Coating Diameter	250-1000um
Typical Splice Time	14s
Typical Heating Time	24s
Dimensions(Cm)	155*144*155
Weight(Kg)	2.3
Transport Package	Packed in Carton
Trademark	SHINHO
Origin	China
HS Code	8515809090
Production Capacity	5000 Units/Year

Product Description

SHINHO S-27 Fusion Splicer Designed for Large Diameter Specialty Fibers

Features

- Applicable to cladding diameter 125~400μm fibers
- Accurate alignment, world standard fusion loss- 14s splicing time, 24s heating time for 40/60mm tube- Applicable to different types fibers (SM/MM/DS/NZDS)- Ruggedized body, waterproof, anti-dust, anti-shock- Pluggable Li-battery, support separate charging- Easy to maintenance, easy to replace the electrodes- USB port for software upgrading, records exporting- Support 4000/100 groups fusion records/fusion images- Comply with CE/Rohs international standard





S-27 Large Diameter Fiber Fusion Splcier Specifications

Alignment method	Clad to clad
Applicable fiber	SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
Cladding diameter	125~400µm
Coating diameter	250~1000µm
Splicing program	40 groups
Operation mode	Manual/ Automatic
Auto- heating	Available
Typical splice time	14 seconds
Typical heating time	24 seconds for 60mm/40mm heating tube
Fiber magnification	X or Y single fiber image 125X,X and Y double image 62.5X
Viewing display	Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
Data storage	4000 groups data records and 100 group images
Loss evaluation	Available
Tension test	1.8~2.2N
Interface	GUI menu interface, easy for operation
Battery capacity	5200mAh Li-battery, 120 cycles splicing and heating
Power supply	Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life	>3000 times discharge (125um),>1000 times discharge (>125um)
Terminals	Micro-USB 2.0 port, for software upgrading, records exporting
Operating condition	Altitude:0-5000m,Humidity:0-95%,Temperature:-10ºC~+50ºC;Wind:max 15m/s
Dimension/Weight	155mm (L)×144mm (W)×155mm (H) /2.3kg (incuding battery)

Packing&Shipping

Delivery leading period
Within 3 working days for small orders after receiving full payment;
Kindly consult us for bulk orders.

Shipmen
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders;
By sea or by aircargo for bulk orders.

After-sales Services
We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.We guarantee all our fusion splicers for 12 months from the date customers receive them. Other parts for six months. During the warranty period, we can repair or replace the defective parts for free. After the warranty time, we can also repair the defective parts, but only charge for parts.

Production and Test

Company Profile
Shinho Fiber Communication is a professional OEM manufacturer of fiber optic fusion splicers. Besides, Shinho could also supply other related test equipment, like palm OTDRs, power meters, VFLs, light sources, fiber identifiers, toolkits, cleavers, etc. Shinho optical fiber fusion splicers have advanced functions and stable performance, and their splicing loss could reach the top level in the world. After several years' development, Shinho products are broadly acknowledged and trusted by different clients around the world, like USA, South America, Russia, India, Pakistan, Europe, Middle East, South Africa, etc. Shinho would keep researching and developing the top level fiber optic fusion splicers, providing the excellent and quick service to our customers.shinhofiber.en.made-in-china.com
